Product Datasheet Search Results:

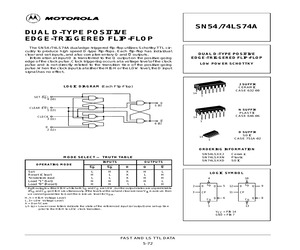

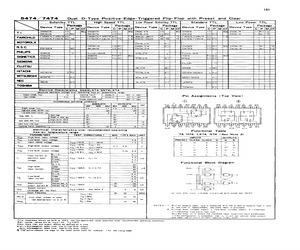

3 Pages, 39 KB, Original- SN74LS74N
- Motorola / Freescale Semiconductor
- DUAL D-TYPE POSITIVE EDGE-TRIGGERED FLIP-FLOP
3 Pages, 39 KB, Original- SN74LS74N
- On Semiconductor L.l.c.
- LS SERIES, DUAL POSITIVE EDGE TRIGGERED D FLIP-FLOP, INVERTED OUTPUT, PDIP14
Product Details Search Results:
Onsemi.com/SN74LS74N
{"Status":"ACTIVE","Supply Voltage-Min (Vsup)":"4.75 V","Package Body Material":"PLASTIC/EPOXY","Mfr Package Description":"PLASTIC, DIP-14","Operating Temperature-Min":"0.0 Cel","Family":"LS","Terminal Form":"THROUGH-HOLE","Number of Bits":"1","Package Style":"IN-LINE","Operating Temperature-Max":"70 Cel","fmax-Min":"25 MHz","Supply Voltage-Max (Vsup)":"5.25 V","Supply Voltage-Nom (Vsup)":"5 V","Trigger Type":"POSITIVE EDGE","Number of Functions":"2","Temperature Grade":"COMMERCIAL","Terminal Position":"DUA...
1352 Bytes - 03:33:51, 25 April 2025
